THHN/THWN 600V(UL)

CHARACTERISTICS

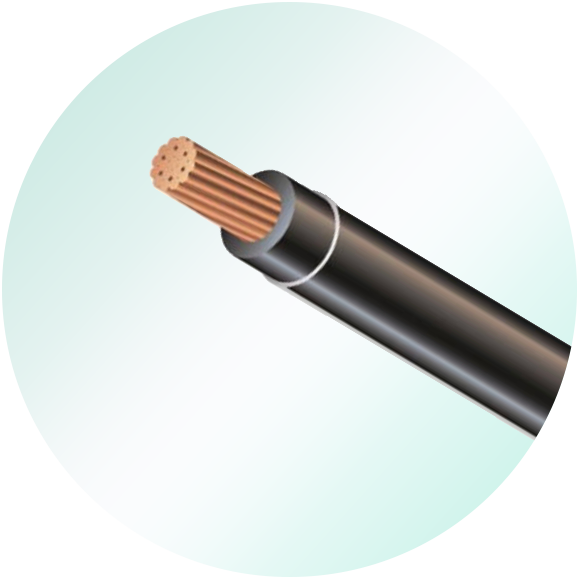

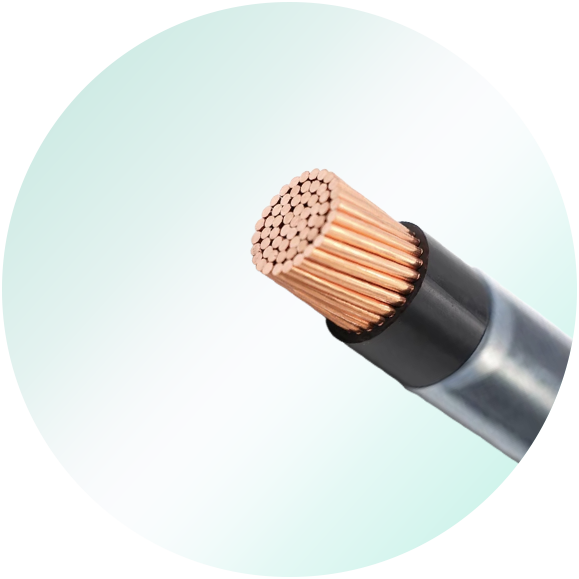

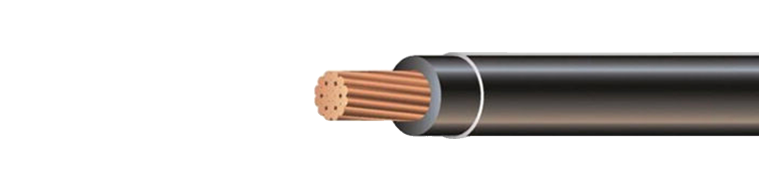

I. Conductor and Insulation System

1.Conductor: Available in stranded or solid copper, or stranded aluminum (AA-8000 series), depending on gauge and application; conductor construction is chosen to balance flexibility with current-carrying capacity.

2.Primary Insulation: Polyvinyl chloride (PVC) insulation forms the main dielectric layer, providing good flexibility, abrasion resistance, and dielectric strength for general-purpose wiring applications.

3.Nylon Jacket: A thin nylon outer jacket is extruded over the PVC insulation, giving the wire strong resistance to cutting, abrasion, and gasoline or oil exposure during and after installation.

4.Dual Rating Design: The combination of PVC insulation and nylon jacket allows the wire to simultaneously meet both THHN (dry location, high heat) and THWN (wet location) requirements, so a single product can be used across varying installation environments.

II. Temperature and Voltage Rating

1.Dry Location Rating: Rated for continuous operation at 90°C in dry and damp locations under the THHN designation, allowing for higher ampacity compared to 60°C or 75°C rated wire of the same gauge.

2.Wet Location Rating: Rated for continuous operation at 75°C in wet locations under the THWN designation, ensuring safe performance in conduit runs exposed to moisture, condensation, or underground duct conditions.

3.Voltage Rating: Rated at 600V, suitable for general building wiring, branch circuits, feeders, and control circuits in residential, commercial, and industrial installations.

III. Conduit and Raceway Application

1.Primary Use Case: Designed specifically for installation within conduit, raceway, or approved cable tray systems, rather than direct burial or exposed cable runs, providing the wire with additional external mechanical protection.

2.Pulling Performance: The nylon jacket gives the wire a low coefficient of friction, making it easier to pull through conduit runs with multiple bends without damaging the insulation.

3.Common Applications: Frequently used for branch circuit wiring in commercial and residential buildings, motor and equipment feeders, panelboard connections, and control wiring in industrial facilities.

IV. Chemical and Environmental Resistance

1.Oil and Gasoline Resistance: The nylon outer jacket provides strong resistance to oil, gasoline, and many common solvents, making the wire suitable for use in machine shops, garages, and industrial environments where such exposure is likely.

2.Moisture Resistance: The PVC insulation, combined with the nylon jacket, resists water absorption, helping maintain insulation resistance in damp or occasionally wet conduit conditions under the THWN rating.

3.Abrasion Resistance: The tough nylon jacket protects the underlying PVC insulation from nicks and abrasion during pulling and installation, reducing the risk of insulation damage that could lead to faults over time.

V. Mechanical and Handling Characteristics

1.Flexibility: Stranded conductor construction offers good flexibility for routing through conduit bends and panel connections, while solid conductor versions are typically used for smaller gauge branch circuit wiring.

2.Compact Sizing: The thin dual-layer insulation and jacket system keeps overall wire diameter relatively small for its ampacity rating, which helps when calculating conduit fill for multiple conductors.

3.Standard Compliance: Manufactured and tested to UL 83 and UL 1063 standards, along with compliance to NEC requirements, ensuring the wire meets recognized safety benchmarks for use in the United States.

VI. Available Configurations

1.Conductor Material: Copper or aluminum conductor options, depending on project current requirements and cost considerations.

2.Conductor Sizing: Available across a wide range of AWG and kcmil sizes, from small branch circuit conductors to larger feeder sizes.

3.Application Fit: Well suited to any conduit-based wiring system requiring a single wire product that performs reliably in both dry, high-heat environments and occasionally wet conditions.
