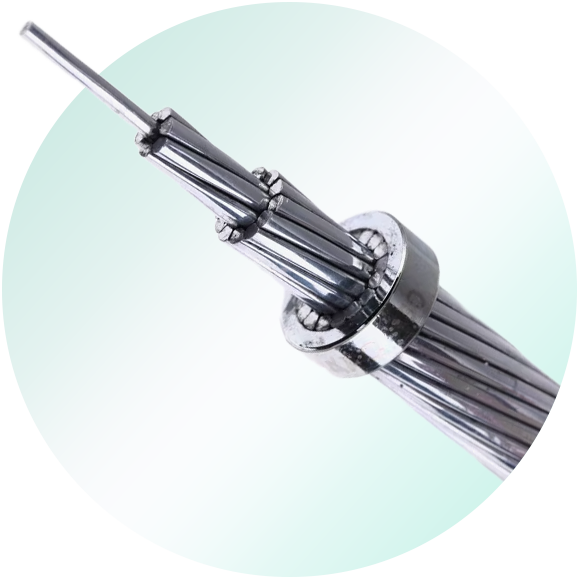

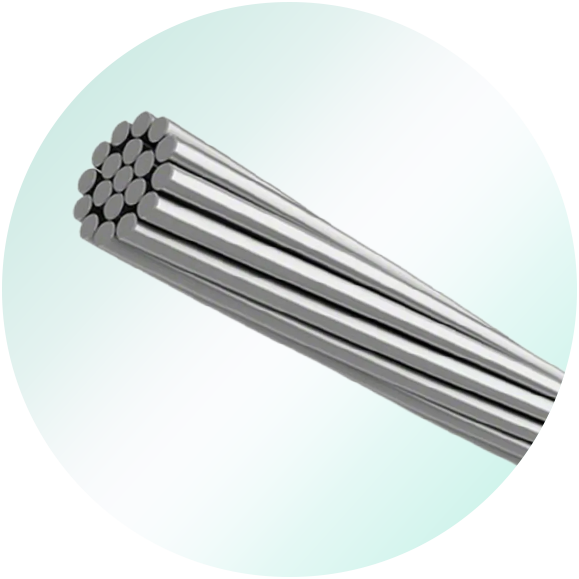

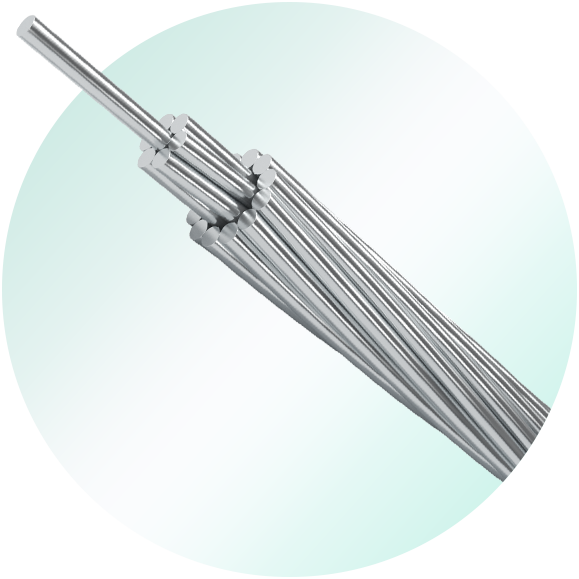

AAC-All Aluminum Conductor

AAC Overhead Conductor (Bare Wire)

HDA Hard Drawn Aluminum Stranded Conductor

Bare Aluminum Conductor

All aluminium conductors are made up of one or more strands of aluminium wire depending on the end usage. It features high electrical conductivity, light weight, simple structure and excellent corrosion resistance.

Send E-mail Inquiry Now PDF Download

Application Construction Characteristics Parameter Related Products

APPLICATION

AAC (All Aluminum Conductor) is a stranded overhead conductor made entirely of hard-drawn aluminum wires without any steel core. It features high electrical conductivity, light weight, simple structure and excellent corrosion resistance. Due to its lower mechanical strength and larger thermal sag compared with ACSR, AAC has fixed and targeted application scenarios in power distribution and transmission systems.AAC conductor cables are mainly used in urban areas where the spacing is short and the support points are close together.

All aluminum conductors consist of one or more aluminum wires, depending on the end use. AAC is also widely used in coastal areas because it is highly resistant to corrosion. Concentric stranded aluminum conductor (AAC) is made of hard drawn aluminum wire (HDA conductor).

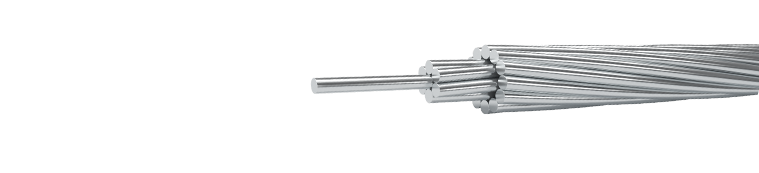

Construction

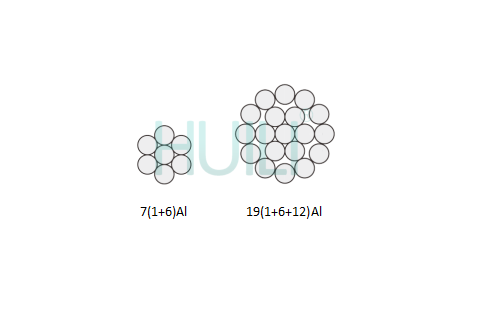

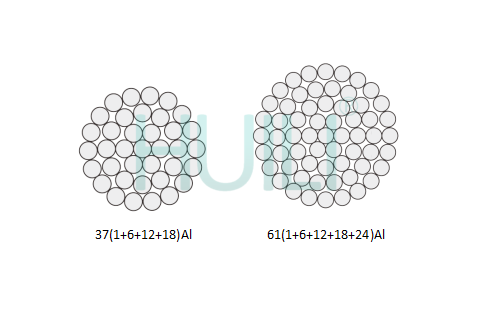

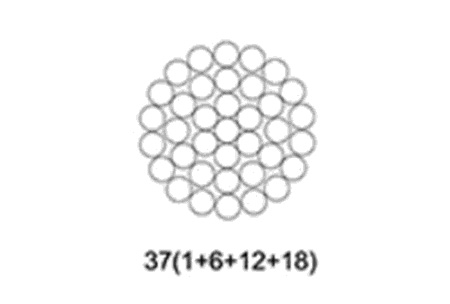

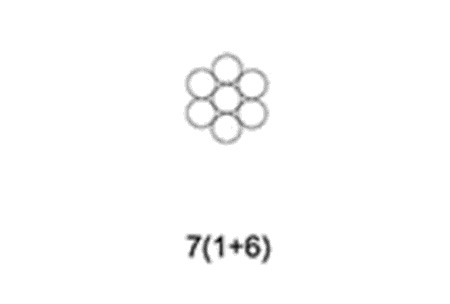

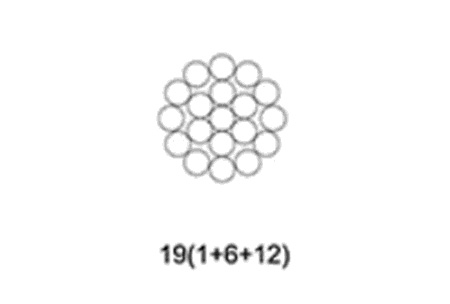

AAC is a concentric-lay-stranded conductor consisting of hard drawn aluminum wires. All aluminum conductors (AAC) are made up of one or more strands of aluminium wire depending on the end usage.

CHARACTERISTICS

Characteristics of All-Aluminum Stranded Conductors

1 Structural Characteristics

1.1 The conductor is concentrically stranded entirely with 1350-H19 hard-drawn aluminum wires, without any steel core, featuring a simple and single structure composed of multi-layer spiraled aluminum strands.

1.2 Light weight: It has a lower self-weight than ACSR with the same cross-sectional area, which reduces the load on supporting transmission towers.

1.3 Good flexibility: It is easy to bend, reel, transport and string during field installation with smaller delivery reels.

1.4 No contact between aluminum and dissimilar steel metals, eliminating the risk of bimetallic galvanic corrosion inside the cable.

2 Electrical Characteristics

2.1 Excellent conductivity with a conductivity of approximately 61% IACS. The whole conductor participates in power transmission without non-conductive steel core occupying conductive space.

2.2 Optimized utilization of skin effect with no extra power loss induced by steel core, delivering slightly higher ampacity than ACSR of equal cross-section.

2.3 Stable DC resistance and uniform temperature coefficient due to homogeneous aluminum material, simplifying resistance calculation for engineering design.

2.4 Larger outer diameter reduces corona loss and radio interference, making it suitable for medium and low voltage overhead lines.

2.5 Continuous allowable operating temperature ranges from 70℃ to 90℃. Hard-drawn aluminum will anneal and soften under long-term high temperature, so it is not applicable for sustained heavy-load high-temperature working conditions.

3 Mechanical Characteristics

3.1 Low tensile strength without steel reinforcement; its rated breaking force is much lower than ACSR with identical cross-section.

3.2 High linear thermal expansion coefficient (23×10⁻⁶/℃). The sag increases sharply when the conductor heats up under load, restricting its use for long span transmission sections.

3.3 Poor resistance to heavy ice coating and strong wind vibration; it is prone to excessive sag and strand breakage under harsh meteorological loads.

3.4 Limited span length: Only suitable for short tower distances in flat and mild-climate areas.

4 Environmental & Economic Characteristics

4.1 Superior corrosion resistance for corrosive environments such as coastal salt fog and industrial acid-alkali gas zones, as there is no steel core susceptible to rust.

4.2 Low raw material and construction cost, with simple production process and convenient maintenance.

4.3 Fully recyclable aluminum material, eco-friendly for power grid construction projects.

STANDARD

ASTM B 231
BS EN 50182
BS 215-1
DIN 48201-5
AS 1531 Conductors
IEC 61089
GB/T 1179

Code Name	Area		Stranding and Wire Diameter	Approx. Overall Diameter	Unit Weight	Nominal Breaking Load	Max. DC Resistance at 20℃
Code Name	AWG or MCM	mm2	No./mm	mm	kg/km	kN	Ohm/km
PEACHBELL	6	13.3	7/1.56	4.68	37	2.53	2.1692
ROSE	4	21.1	7/1.96	5.88	58	3.91	1.3624
IRIS	2	33.6	7/2.47	7.41	93	5.99	0.8577
PANSY	1	42.4	7/2.78	8.34	117	7.30	0.6801
POPPY	1/0	53.5	7/3.12	9.36	147	8.84	0.5390
ASTER	2/0	67.4	7/3.50	10.50	186	11.1	0.4276
PHLOX	3/0	85.0	7/3.93	11.79	234	13.5	0.3390
OXLIP	4/0	107.2	7/4.42	13.26	295	17.0	0.2688
VALERIAN	250	126.7	19/2.91	14.55	349	20.7	0.2275
SNEEZEWORT	250	126.7	7/4.80	14.40	349	20.1	0.2275
LAUREL	266.8	135.2	19/3.01	15.05	372	22.1	0.2133
DAISY	266.8	135.2	7/4.96	14.88	372	21.4	0.2133
PEONY	300	152.0	19/3.19	15.95	418	24.3	0.1896
TULIP	336.4	170.5	19/3.38	16.90	470	27.3	0.1691
DAFFODIL	350	177.3	19/3.45	17.25	488	28.4	0.1625
CANNA	397.5	201.4	19/3.67	18.35	555	31.6	0.1431
GOLDENTUFT	450	228.0	19/3.91	19.55	628	35.0	0.1264
SYRINGA	477	241.7	37/2.88	20.16	665	38.6	0.1193
COSMOS	477	241.7	19/4.02	20.10	665	37.0	0.1193
HYACINTH	500	253.3	37/2.95	20.65	697	40.5	0.1138
ZINNIA	500	253.3	19/4.12	20.60	697	38.9	0.1138
MISTLETOE	556.5	282.0	37/3.12	21.84	776	44.3	0.1022
DAHLIA	556.5	282.0	19/4.35	21.75	776	43.3	0.1022
MEADOWSWEET	600	304.0	37/3.23	22.61	836	47.5	0.0948
ORCHID	636	322.3	37/3.33	23.31	887	50.4	0.0894
HEUCHERA	650	329.4	37/3.37	23.59	907	51.7	0.0875
FLAG	700	354.7	61/2.72	24.48	976	57.1	0.0813
VERBENA	700	354.7	37/3.49	24.43	976	55.4	0.0813
NASTURTIUM	715.5	362.6	61/2.75	24.75	999	58.4	0.0795
VIOLET	715.5	362.6	37/3.53	24.71	999	56.7	0.0795
CATTAIL	750	380.0	61/2.82	25.38	1046	60.3	0.0756
PETUNIA	750	380.0	37/3.62	25.34	1046	58.6	0.0756
LILAC	795	402.8	61/2.90	26.10	1110	63.8	0.0715
ARBUTUS	795	402.8	37/3.72	26.04	1109	61.8	0.0715
SNAPDRAGON	900	456.0	61/3.09	27.81	1256	70.8	0.0632
COCKSCOMB	900	456.0	37/3.96	27.72	1256	68.4	0.0632
GOLDENROD	954	483.4	61/3.18	28.62	1331	75.0	0.0596
MAGNOLIA	954	483.4	37/4.08	28.56	1331	72.6	0.0596
CAMELLIA	1000	506.7	61/3.25	29.25	1394	78.3	0.0569
HAWKWEED	1000	506.7	37/4.18	29.26	1395	76.2	0.0569
LARKSPUR	1033.5	523.7	61/3.31	29.79	1442	81.3	0.0550
BLUEBELL	1033.5	523.7	37/4.25	29.75	1441	78.8	0.0550
MARIGOLD	1113	564.0	61/3.43	30.87	1553	87.3	0.0511
HAWTHORN	1192.5	604.2	61/3.55	31.95	1662	93.5	0.0477
NARCISSUS	1272	644.5	61/3.67	33.03	1774	98.1	0.0446
COLUMBINE	1351	684.6	61/3.78	34.02	1884	104.0	0.0420
CARNATION	1431	725.1	61/3.89	35.01	1997	108.0	0.0396
GLADIOLUS	1510.5	765.4	61/4.00	36.00	2108	114.0	0.0375
COREOPSIS	1590	805.7	61/4.10	36.90	2216	120.0	0.0357
JESSAMINE	1750	886.7	61/4.30	38.70	2442	132.0	0.0324
COWSLIP	2000	1013.0	91/3.77	41.47	2787	153.0	0.0284
SAGEBRUSH	2250	1140.0	91/3.99	43.89	3166	167.0	0.0255
LUPINE	2500	1267.0	91/4.21	46.31	3519	186.0	0.0229
BITTERROOT	2750	1393.0	91/4.42	48.62	3872	205.0	0.0208
TRILLIUM	3000	1520.0	127/3.90	50.70	4226	223.0	0.0191
BLUEBONNET	3500	1773.0	127/4.22	54.86	4977	261.0	0.0165

Code	Old Code	Area	Number of Wires	Diameter		Mass per Unit length	Rated Strength	Max. DC Resistance at 20℃
		Area	Number of Wires	Wire	Cond.	Mass per Unit length	Rated Strength	Max. DC Resistance at 20℃
		mm2	No.	mm	mm	kg/km	kN	Ω/km
23-AL1	MIDGE	23.3	7	2.06	6.18	64	4.20	1.2270
27-AL1	GNAT	26.9	7	2.21	6.63	73	4.83	1.0660
37-AL1	MOSQUITO	36.9	7	2.59	7.77	101	6.27	0.7762
43-AL1	LADYBIRD	42.8	7	2.79	8.37	117	7.28	0.6689
53-AL1	ANT	52.8	7	3.10	9.30	144	8.72	0.5419
64-AL1	FLY	63.6	7	3.40	10.20	174	10.49	0.4505
74-AL1	BLUEBOTTLE	73.6	7	3.66	11.00	201	11.78	0.3881
79-AL1	EARWIG	78.6	7	3.78	11.30	215	12.57	0.3644
84-AL1	GRASSHOPPER	84.1	7	3.91	11.70	230	13.45	0.3406
96-AL1	CLEGG	95.6	7	4.17	12.50	261	15.30	0.2994
106-AL1	WASP	106.0	7	4.39	13.20	290	16.95	0.2702
106-AL1	BEETLE	106.4	19	2.67	13.40	292	18.08	0.2704
132-AL1	BEE	132.0	7	4.90	14.70	361	21.12	0.2169
158-AL1	HORNET	157.6	19	3.25	16.30	433	26.01	0.1825
186-AL1	CATERPILLAR	185.9	19	3.53	17.70	511	29.75	0.1547
213-AL1	CHAFER	213.2	19	3.78	18.90	586	34.12	0.1349
238-AL1	SPIDER	237.6	19	3.99	20.00	653	38.01	0.1211
266-AL1	COCKROACH	265.7	19	4.22	21.10	730	42.52	0.1083
323-AL1	BUTTERFLY	322.7	19	4.65	23.30	887	51.63	0.0892
373-AL1	MOTH	373.1	19	5.00	25.00	1025	59.69	0.0771
372-AL1	DRONE	372.4	37	3.58	25.10	1027	59.59	0.0774
415-AL1	CENTIPEDE	415.2	37	3.78	26.50	1145	66.43	0.0695
486-AL1	MAYBUG	486.1	37	4.09	28.60	1341	77.78	0.0593
530-AL1	SCORPION	529.8	37	4.27	29.90	1461	84.77	0.0544
628-AL1	CICADA	628.3	37	4.65	32.60	1733	100.54	0.0459

Code Number	Area	Number of Wires	Diameter		Mass per Unit Length	Rated Strength	Max. DC Resistance at 20℃
	Area	Number of Wires	Wire	Cond.	Mass per Unit Length	Rated Strength	Max. DC Resistance at 20℃
	mm2	No.	mm	mm	kg/km	kN	Ω/km
16	15.9	7	1.70	5.10	43	2.84	1.8018
25	24.2	7	2.10	6.30	66	4.17	1.1808
35	34.4	7	2.50	7.50	94	5.78	0.8332
50	49.5	7	3.00	9.00	135	7.95	0.5786
50	48.3	19	1.80	9.00	133	8.44	0.5950
70	65.8	19	2.10	10.50	181	11.25	0.4371
95	93.3	19	2.50	12.50	256	15.65	0.3085
120	117.0	19	2.80	14.00	322	18.75	0.2459
150	147.1	37	2.25	15.80	406	25.25	0.1961
185	181.6	37	2.50	17.50	501	30.45	0.1587
240	242.5	61	2.25	20.30	670	39.35	0.1192
300	299.4	61	2.50	22.50	827	47.55	0.0965
400	400.1	61	2.89	26.00	1105	60.86	0.0722
500	499.8	61	3.23	29.10	1381	74.67	0.0578
625	626.3	91	2.96	32.60	1733	95.00	0.0462
800	802.1	91	3.35	36.90	2219	118.20	0.0361
1000	999.7	91	3.74	41.10	2766	145.50	0.0290

Code Name	Stranding and Wire Diameter	Approx. Overall Diameter	Cross- sectional Area	Approx. Weight	Break Load	Equiv. Aluminium Area	Max. DC Resistance at 20℃



	No./mm	mm	mm2	kg/km	KN	mm2	Ω/km
Leo	7/2.50	7.50	34.4	94	5.71	33.9	0.8330
Leonids	7/2.75	8.25	41.6	113	6.72	41.1	0.6890
Libra	7/3.00	9.00	49.5	135	7.98	48.9	0.5790
Mars	7/3.75	11.30	77.3	211	11.8	76.3	0.3700
Mercury	7/4.50	13.50	111.3	304	16.9	110	0.2580
Moon	7/4.75	14.30	124.0	339	18.9	122	0.2320
Neptune	19/3.25	16.30	157.6	433	24.7	154	0.1830
Orion	19/3.50	17.50	182.8	503	28.7	180	0.1570
Pluto	19/3.75	18.80	209.8	576	31.9	206	0.1370
Saturn	37/3.00	21.00	261.6	721	42.2	256	0.1100
Sirius	37/3.25	22.80	307.0	845	48.2	301	0.0940
Taurus	19/4.75	23.80	336.7	924	51.3	331	0.0857
Triton	37/3.75	26.30	408.5	1120	62.2	400	0.0706
Uranus	61/3.25	29.30	506.1	1400	75.2	495	0.0572
Ursula	61/3.50	31.50	586.9	1620	87.3	574	0.0493
Venus	61/3.75	33.80	673.4	1860	97.2	659	0.0429

Code Number	Area	Number of Wires	Diameter		Linear Mass	Rated Strength	Max. DC Resistance at 20℃
	Area	Number of Wires	Wire	Cond.	Linear Mass	Rated Strength	Max. DC Resistance at 20℃
	mm2	No.	mm	mm	kg/km	kN	Ω/km
10	10	7	1.35	4.05	27.4	1.95	2.8633
16	16	7	1.71	5.12	43.8	3.04	1.7896
25	25	7	2.13	6.40	68.4	4.50	1.1453
40	40	7	2.70	8.09	109.4	6.80	0.7158
63	63	7	3.39	10.20	172.3	10.39	0.4545
100	100	19	2.59	12.90	274.8	17.00	0.2877
125	125	19	2.89	14.50	343.6	21.25	0.2302
160	160	19	3.27	16.40	439.8	26.40	0.1798
200	200	19	3.66	18.30	549.7	32.00	0.1439
250	250	19	4.09	20.50	687.1	40.00	0.1151
315	315	37	3.29	23.00	867.9	51.97	0.0916
400	400	37	3.71	26.00	1102.0	64.00	0.0721
450	450	37	3.94	27.50	1239.8	72.00	0.0641
500	500	37	4.15	29.00	1377.6	80.00	0.0577
560	560	37	4.39	30.70	1542.9	89.60	0.0515
630	630	61	3.63	32.60	1738.3	100.80	0.0458
710	710	61	3.85	34.60	1959.1	113.60	0.0407
800	800	61	4.09	36.80	2207.4	128.00	0.0361
900	900	61	4.33	39.00	2483.3	144.00	0.0321
1000	1000	61	4.57	41.10	2759.2	160.00	0.0289
1120	1120	91	3.96	43.50	3093.5	179.20	0.0258
1250	1250	91	4.18	46.00	3452.6	200.00	0.0231
1400	1400	91	4.43	48.70	3866.9	224.00	0.0207
1500	1500	91	4.58	50.40	4143.1	240.00	0.0193
