H07V-U BV/H07V-R BVR
H07V-U BV/H07V-R BVR
H07V-U BV/H07V-R BVR

H07V-U BV/H07V-R BVR

The cable is suitable for building wiring, lighting circuits, distribution cabinets, instruments, switching boxes equipment and electrical appliances connection for rated voltage 450/750V and below.

Send E-mail Inquiry Now
Application Construction Characteristics Parameter Related Products

APPLICATION

The cable is suitable for building wiring, lighting circuits, distribution cabinets, instruments, switching boxes equipment and electrical appliances connection for rated voltage 450/750V and below. Also it is intended for use in semi-flush exposed conduits and embedded conduits as well as in closed installation ducts, and is ideal for the internal wiring of appliances.

Construction

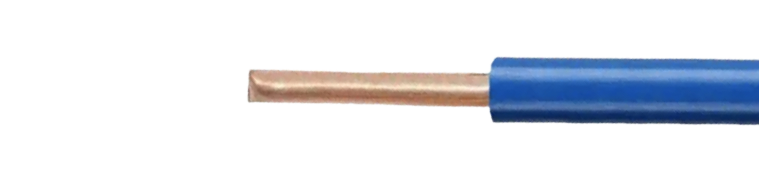

H07V-U-BV-10

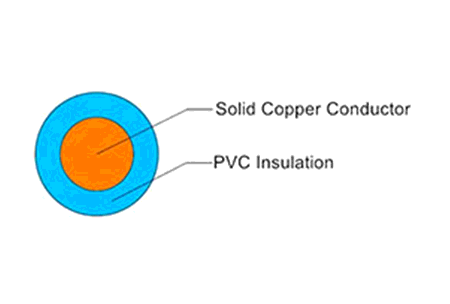

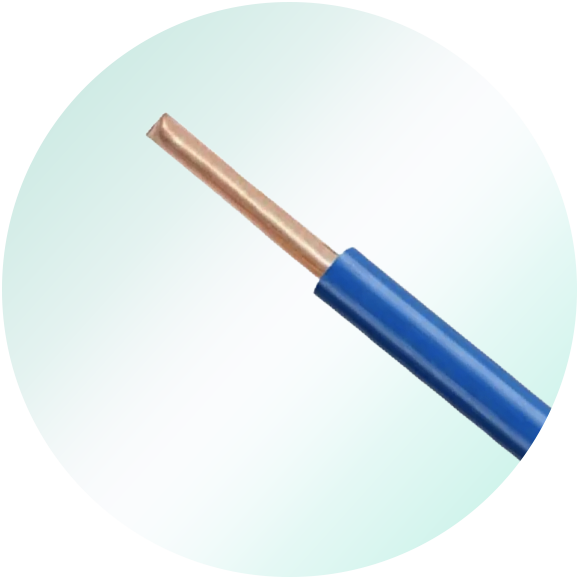

● H07V-U Conductor: Copper, class 1, solid conductors

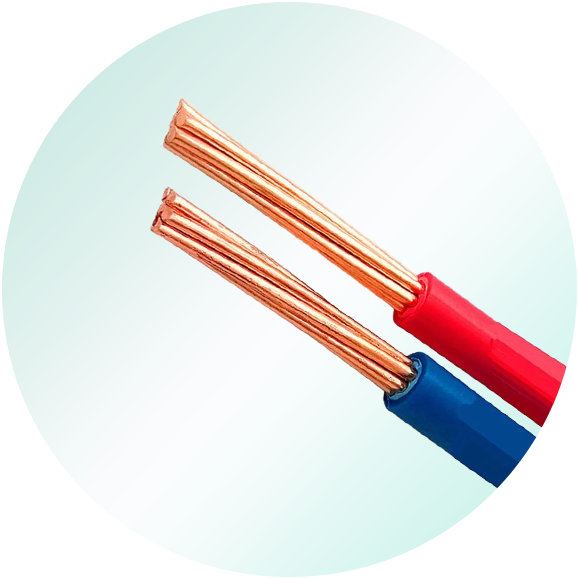

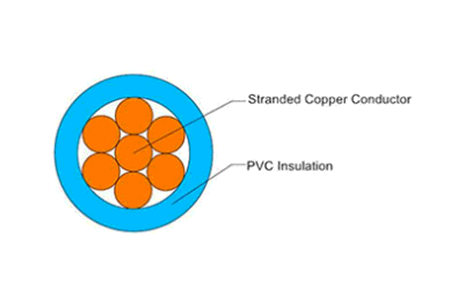

● H07V-R Conductor: Copper, class 2, stranded conductors
● Insulation: Polyvinyl chloride PVC

  • H07V-U-BV-12
  • H07V-U-BV-13
  • H07V-U-BV-12

CHARACTERISTICS

● Rated voltage Uo/U: 450/750V

● Normal operating temperature: 70˚C

● Short circuit temperature (5 seconds maximum duration): 160˚C

● Property of flame retardant, fire resistance,environment protection can be ch

STANDARD

  • IEC 60228

    Conductors of Insulated Cables

  • IEC 60227-3(60227 IEC 01)

    Polyvinyl Chloride Insulated Cables of Rated Voltages up to and Including 450/750 V – Part 3: Non-sheathed Cables for Fixed Wiring

  • DIN VED 0281-3

    Polyvinyl Chloride Insulated Cables of Rated Voltages up to and Including 450/750 V – Part 3: Non-sheathed Cables for Fixed Wiring

Product parameters

Conductor Nominal Insulation
Thickness		 Overall Diameter Approx.Weight of Cable Max. D.C. Resistance of Conductor
at 20℃
Nominal section area Class of conductor Number and Diameter of Wires Min. Max.
mm² No./mm mm mm mm kg/km Ω/km
1.5 1 1/1.38 0.7 2.6  3.2  20  12.1
2.5 1 1/1.78 0.8 3.2  3.9  32  7.41
4 1 1/2.25 0.8 3.6  4.4  47  4.61
6 1 1/2.76 0.8 4.1  5.0  67  3.08
10 1 1/3.57 1.0  5.3  6.4  110  1.83
Conductor Nominal Insulation
Thickness		 Overall Diameter Approx.Weight of Cable Max. D.C. Resistance of Conductor
at 20℃
Nominal section area Class of conductor Number and Diameter of Wires Min. Max.
mm² No./mm mm mm mm kg/km Ω/km
1.5 2 7/0.52 0.7 2.7  3.3  21  12.1
2.5 2 7/0.68 0.8 3.3  4.0  34  7.41
4 2 7/0.85 0.8 3.8  4.6  49  4.61
6 2 7/1.04 0.8 4.3  5.2  69  3.08
10 2 7/1.35 1.0  5.6  6.7  112  1.83
16 2 7/1.70 1.0  6.4  7.8  169  1.15
25 2 7/2.14 1.2 8.1  9.7  263  0.727
35 2 7/2.52 1.2 9.0  10.9  354  0.524
50 2 19/1.78 1.4 10.6  12.8  480  0.387
70 2 19/2.14 1.4 12.1  14.6  674  0.268
95 2 19/2.52 1.6 14.1  17.1  933  0.193
120 2 37/2.03 1.6 15.6  18.8  1163  0.153
150 2 37/2.25 1.8 17.3  20.9  1436  0.124
185 2 37/2.52 2.0  19.3  23.3  1786  0.0991
240 2 61/2.25 2.2 22.0  26.6  2342  0.0754
300 2 61/2.52 2.4  24.5  29.6  2971  0.0601
400 2 61/2.85 2.6 27.5  33.2  3927  0.0470
