H07V-K RV
The cable is suitable for building wiring, lighting circuits, distribution cabinets, instruments, switching boxes equipment and electrical appliances connection for rated voltage 450/750V and below.
Home > Products > Electric Wire
The cable is suitable for building wiring, lighting circuits, distribution cabinets, instruments, switching boxes equipment and electrical appliances connection for rated voltage 450/750V and below.
The cable is suitable for building wiring, lighting circuits, distribution cabinets, instruments, switching boxes equipment and electrical appliances connection for rated voltage 450/750V and below. Also it is intended for use in semi-flush exposed conduits and embedded conduits as well as in closed installation ducts, and is ideal for the internal wiring of appliances.

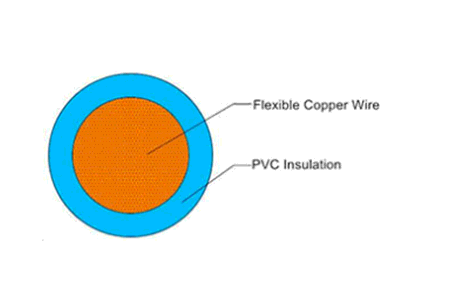

● Conductor: Copper, class 5, flexible conductors
● Insulation: Polyvinyl chloride PVC
● Rated voltage Uo/U: 450/750 V
● Normal operating temperature: 70˚C
● Short circuit temperature (5 seconds maximum duration): 160˚C
● Property of flame retardant, fire resistance,environment protection can be chose.
Conductors of Insulated Cables
Polyvinyl Chloride Insulated Cables of Rated Voltages up to and Including 450/750 V – Part 3: Non-sheathed Cables for Fixed Wiring
Polyvinyl Chloride Insulated Cables of Rated Voltages up to and Including 450/750 V – Part 3: Non-sheathed Cables for Fixed Wiring
| Conductor | Nominal Insulation Thickness |
Overall Diameter | Approx.Weight of Cable | Max. D.C. Resistance of Conductor at 20℃ |
|||
| Nominal section area | Class of conductor | Number and Diameter of Wires | Min. | Max. | |||
| mm² | No./mm | mm | mm | mm | kg/km | Ω/km | |
| 1.5 | 5 | 30/0.25 | 0.7 | 2.8 | 3.4 | 21 | 13.3 |
| 2.5 | 5 | 49/0.25 | 0.8 | 3.4 | 4.1 | 34 | 7.98 |
| 4 | 5 | 56/0.30 | 0.8 | 3.9 | 4.8 | 49 | 4.95 |
| 6 | 5 | 84/0.30 | 0.8 | 4.4 | 5.3 | 69 | 3.30 |
| 10 | 5 | 84/0.40 | 1.0 | 5.7 | 6.8 | 112 | 1.91 |
| 16 | 5 | 126/0.40 | 1.0 | 6.7 | 8.1 | 169 | 1.21 |
| 25 | 5 | 196/0.40 | 1.2 | 8.4 | 10.2 | 263 | 0.780 |
| 35 | 5 | 276/0.40 | 1.2 | 9.7 | 11.7 | 354 | 0.554 |
| 50 | 5 | 396/0.40 | 1.4 | 11.5 | 13.9 | 480 | 0.386 |
| 70 | 5 | 360/0.50 | 1.4 | 13.2 | 16.0 | 711 | 0.272 |
| 95 | 5 | 475/0.50 | 1.6 | 15.1 | 18.2 | 917 | 0.206 |
| 120 | 5 | 608/0.50 | 1.6 | 16.7 | 20.2 | 1163 | 0.161 |
| 150 | 5 | 756/0.50 | 1.8 | 18.6 | 22.5 | 1396 | 0.129 |
| 185 | 5 | 925/0.50 | 2.0 | 20.6 | 24.9 | 1786 | 0.106 |
| 240 | 5 | 1221/0.50 | 2.2 | 23.5 | 28.4 | 2245 | 0.0801 |
